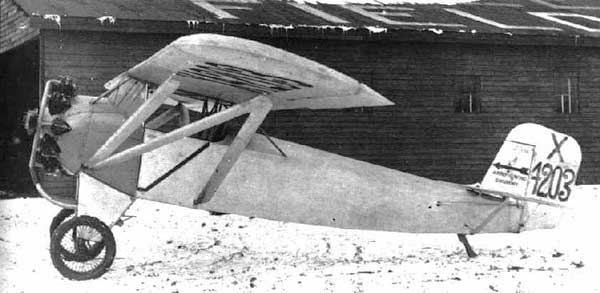

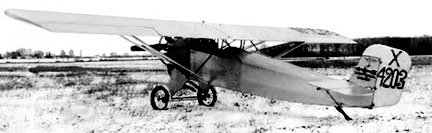

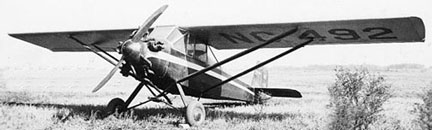

C. G. Taylor's "Chummy"
The brothers C. G. and Gordon Taylor began the small-scale design and manufacture of lightplanes in Rochester, New York, in the mid-1920's. The first airplane produced by the fledgling Taylor Brothers Aircraft corporation was the two- seat "Chummy" made in 1926 and 1927. The Chummy was a side-by-side, two-seater parasol monoplane powered by a 90 h.p. radial engine. While the Chummy was eminently unsuccessful as a commercial venture, it was indeed the great-granddaddy of the later Taylor and Piper Cubs.

The stock-market crash of 1929 ended forever the chances of marketing the Chummy since it had been designed to sell for around $4,000.

C. G. Taylor, a self-taught aeronautical engineer, handled the design work for the company, and his brother Gordon was responsible for demonstrations and sales of the newairplane. Gordon Taylor died in 1928 and in 1929 C. G. Taylor moved the operations of Taylor Brothers Aircraft Corporation to Bradford, Pennsylvania. It was here in that year that C. G. Taylor and William T. Piper became associated.

Piper who was 48 at the time of his meeting with Taylor was a successful Bradford businessman, having been in the oil business in Bradford since 1914 developing local oil field. holdings. When the Taylor Brothers Aircraft Corporation opened shop in Bradford, W. T. Piper and his partner Ralph Lloyd invested $800 of their oil partnership funds in the new company and Piper became a director of the firm.

Taylor and piper envisioned a new, more economical and more salable lightplane as an alternative to the chummy design. Manufacture of the new plane with which the company hoped to beat the depression was completed and the plane test-flown within a 30-day period in August and September, 1930. Engineering stress analyses were prepared in order to obtain CAA approval of the design.



---

The First Cub

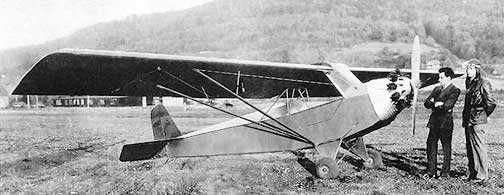

The first successful plane Taylor and Piper produced was the Model E-2. The engine installed in this airplane was the Brownbach "Kitten" which had been manufactured in Pottstown, Pennsylvania. While the Kitten proved unsatisfactory in the E-2, its name provided the inspiration for naming the E-2 Taylor "Cub". A Salmson, 9-cylinder, 45 h.p. engine turned out to be too expensive to import for the Cub and the model using this powerplant was never licensed.

Taylor and piper envisioned a new, more economical and more salable lightplane as an alternative to the chummy design. Manufacture of the new plane with which the company hoped to beat the depression was completed and the plane test-flown within a 30-day period in August and September, 1930.

Engineering stress analyses were prepared in order to obtain CAA approval of the design

Of all the design work that went into the E-2 Cub, there is perhaps no greater evidence of C. G. Taylor's engineering skill than the fact that the original USA-35B airfoil he selected for the E-2 was still in use when the last Cub was made.

Due to the effects of the stock-market crash, Taylor Brothers Aircraft Corporation was bankrupt early in 1931. After bankruptcy proceedings W. T. Piper purchased the assets of the company including the E-2 for around $600. Piper and C. G. Taylor reorganized the company under the name Taylor Aircraft Company with Taylor as president and Piper as treasurer. Both partners were sure that their Cub would one vday be a success with a more reliable powerplant and a reasonable price tag.

Early in its first year the newly formed Taylor Aircraft Company received a new model A-40, 37 h.p. opposed, air-cooled engine from Continental Motors Company in Detroit, and by June the Taylor Cub with the 37 h.p. Continental engine had been CAA approved, licensed, and was being, offered for sale. During 1931 the Taylor Company completed about 24 of the 37 h.p. Cubs.

From 1931 to 1936, the company showed only small profits. The number of Cubs produced in the first years were correspondingly small-22 airplanes in 1932, 16 in 1933, and 70 in 1934. It was in this year that W. T. Piper purchased C. G. Taylor's share in the company and became president and chairman of the board. The firm name remained the same. In 1936, C. G. Taylor formed the Taylorcraft Aviation company at Alliance, ohio, and continued in the design and manufacture of successful lightplanes.

In 1935 the Cub was produced in three models-the E-2 with the improved Continental A-40-2, 37 h.p. engine, the F-2 with the Aeromarine AR3-40, 40 h.p. engine, and the H-2 with the Szekely 40 h.p. engine. specifications and performance figures for all of these models were very nearly the same and the company made 210 Cubs during this year.

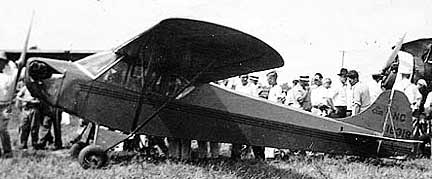

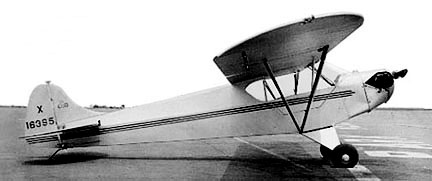

The J-2 Cub

In 1935, the Cub cockpit was enclosed and the little ship began to look more like it does today.In 1936 the completely redesigned J-2 cub was offered with a greatly improved continental engine. The development of a truly successful lightplane had been held back up to this time by the lack of a reliable and economical powerplant.

The Szekely and Aeromarine engines being used were extremely rough in operation and their excessive vibration made them impractical in a light airframe like that of the cub. Although it had been steadily improved since 1931, the continental A-40 was expensive and during the first few years of its use in the Cub it had presented a series of exasperating difficulties and "bugs."

Piper Aircraft and the J-3 Cub
The year 1937 was a year: of great change for W.T. Piper and the Taylor Aircraft Company. In this year the Lycoming Company, the Franklin Air-cooled Engine Company, and the Continental Motor Company all produced the first reliable 40 and 50 h.p. airplane engines. Also it was in this year that the Bradford plant was destroyed by fire and the company reorganized under the name Piper Aircraft Corporation. All manufacturing equipment and 200 employees were moved to new quarters in an empty silk mill in Lock Haven, Pennsylvania-the site of the present Piper plant. In spite of the damage from the fire, Piper production in 1937 was 687 airplanes and the work force was doubled.

In 1938 Piper introduced a further improved version of the Cub, the Model J-3 using the Continental, Lycoming, and Franklin 40 h.p. engines which were soon further developed to 50 h.p. In 1938 the Cub sold for $1,300 and production was 736 airplanes.

Further improvement from 1938 to 1940 boosted the horse-power in all three Cub engines from 40 to 50, 55, 60, and finally to 65 h.p. All three engines (Continental, Lycoming, and Franklin) were used in about equal numbers until 1941. The J-3 Cub was CAA approved for use with the 65 h.p. engines in 1940.

Sparked by the newly inaugurated Civilian Pilot Training Program (C.P.T.P.) Piper sales in 1939 were 1,806 airplanes, and increased in 1940 to 3,017 and in 1941 to 3,197 airplanes. When the Army requested lightplanes for maneuvers in 1941, Continental-powered planes were used since the A-65-8 engine developed slightly more power than either the Lycoming or Franklin engines. Military use of the Continental engines throughout the war resulted in their easy availability after the war was over and all of the postwar Cubs (and most other lightplanes manufactured) were powered by the tried and true Continental.

The Cub Goes to War With The Piper L-4
Although over 75 percent of the lightplanes used in the Civilian Pilot Training Program were Piper Cubs, military acceptance of the Piper Cub L-4 for other than civilian training was slow to develop. In June, 1941, the Air corps was requested to send observation planes for use in the Second Army maneuvers, which were to be held at camp Forrest,

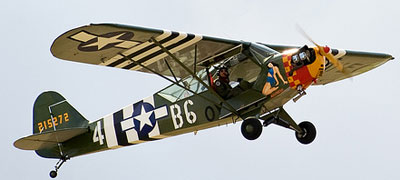

The Piper L-4 Grasshopper sporting invasion stripes

Tennessee. The Air Corps was unable to come up with the planes, so Aeronca, Taylorcraft, and Piper supplied the 12 L-4 planes which were needed along with pilots, mechanics, and technicians free of charge to the Army. The lightplanes proved so useful at Camp Forrest that the Army requested them for the Third Army maneuvers, which were to be held at Fort Bliss in El Paso, Texas shortly after the conclusion of the Second Army maneuvers. It was during these Fort Bliss operations that the lightplanes earned their nickname "Grasshoppers". Further use of this civilian-operated and financed fleet of lightplanes convinced the military of the value of the modern lightplane in military operations.

Shortly after Pearl Harbor-December 7, 1941-the piper Aircraft corporation received the first Army order for 40 Cubs, which was soon followed by a second order for 750. During World War II the government purchased a total of about 6,000 airplanes from Piper. Surprisingly, the bulk of Piper's wartime production was not airplanes at all, but steel radar masts! The Piper cub was used in almost every theater of the war by both the Army and, the Navy and by governments for a vast variety of jobs. Cubs were used for artillery fire direction, liaison, as transports, for reconnaissance, aerial photography, and as ambulances. In some invasion operations, Piper Cubs were launched from special decks constructed on LST's and during the Normandy invasion over 1,000 "Grasshoppers" were flown from England directly to fields in France. Many Cubs were shipped into the combat zones in cargo planes and assembled at the scene of operations.

---

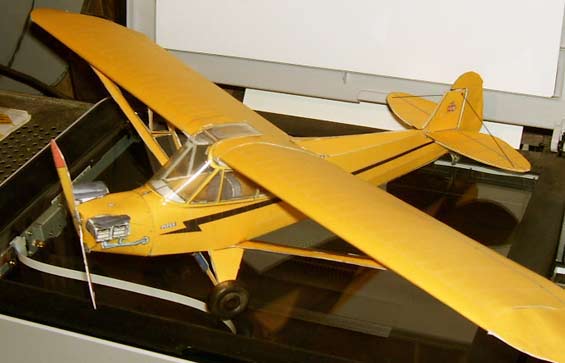

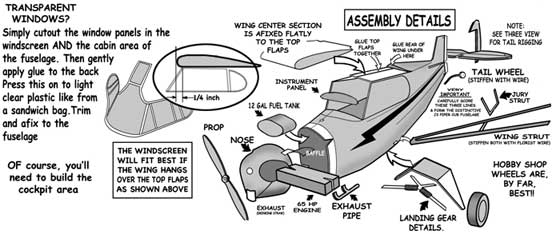

Our new Piper J-3 Cub is available as a FREE download

Free Piper Cub

---

Still More About History of The Piper J-3 Cub
She was conceived in bankruptcy, a true child of the Depression, but she grew up to be a star and to make a fortune for her backer, if not her designer. When war came the soldiers loved her, too. She initiated more gauche young men into the joys of flight than any other airplane ever; and now, as a sprightly old lady, she is still much loved. With more power to her elbow, and a fashionable "Super" to her name, she still seems young and fascinating to her swains.

In 1928 brother Gordon died. The two Taylor brothers had been very close: They'd always worked on their airplanes together, and together they'd gone out barnstorming whenever they had no customers for a Chummy, which was very often. C. G. Taylor felt he couldn't stand to live in Rochester after his brother's death, so he began casting around for somewhere else to build airplanes. He chose Bradford, Pennsylvania, an oil city with money to spend on new industries. The good citizens of Bradford put up $50,000 to persuade Taylor to set up shop there. Of that sum $800 came out of the pocket of one William T. Piper, a highly successful oil man of forty-eight years, a man who had never had aught to do with aviation before, but who found himself suddenly the holder of a seat on the board of the Taylor Aircraft Corporation.

But Piper, if a novice in aviation, was no beginner in business. He could see at once that what aviation lacked was a cheap little airplane, cheap both to buy and to operate. He persuaded Taylor to design such a machine, a kind of scaled-down Chummy. It was named the E-2, and the first one was put together within a month, in late 1930.

The first E-2 was powered by an engine with the lovely name of Brownbach Kitten. It wasn't much of an engine, but it did serve to inspire the name of Cub for the E-2. Various other engines were tried. "The first engines were so bad we always had to travel double-with an automobile to bring the pilot home!" said Mr. Piper, who until his death in 1970 kept up with the affairs of his corporation. Eventually they settled on Continental Motors' A-40 with 37 horsepower.

Business was hardly brisk. Sales dropped to seventeen aircraft in 1933, then climbed to seventy-one the next year, two hundred in 1935, and five hundred in 1936. This was the improved J-2 model, with, for the first time, an enclosed cockpit. In the spring of 1936 Piper bought Taylor out. "Just like anybody else, we got thinking along different lines," Mr. Piper told me on one occasion. "He wanted to do one thing, I wanted to do another. I had all the money in the thing; he had all the know how. He couldn't get anybody to buy me out, so I bought him out."

Then came a holocaust: The entire works burned to the ground. Piper was in Hollywood on a selling trip; he was told by telephone that his new business was a smoking heap of ashes. "We began looking around for someplace to go," he told me, not adding that only five percent of the company's value was covered by insurance. And so Piper came to Lock Haven, Pennsylvania. "Here was a town that was financially sick," he said. "Here was an old silk mill that could be bought for a fraction of what it cost. And an airport right next door. It was a very good move for us."

It was an even better move for Lock Haven, an old lumber town that had settled into decline. That silk mill was a little large for Piper at first, so the second floor was rented out. But not for long. Sales mounted to 687 in 1937, and in 1938 the new, improved J-3 was introduced. This offered the choice of Franklin and Lycoming engines, as well as the Continental-all of them 40 hp, all to be developed over the years till they gave 65 hp. Then, with the Civilian Pilot Training Program, the Cub really started to go: 1,806 were sold in 1939; 3,017 in 1940, and 3,197 in 1941.

The scene now changes to Tennessee, midsummer 1941. The U. S. Army is on maneuvers and it has asked the Air Corps for some planes for observation purposes. The Air Corps is sorry, it can't help. It has nothing suitable. So Piper, along with Aeronca and Taylorcraft (Taylor had started up again by himself), supply a dozen light planes and their crews.

Is there a pilot in America who has not flown a Cub? It's a strangely modern-looking airplane when you remember that its genesis was back in the days when the biplane was still king and the last words in modernity were such period pieces as the Ford Tn-Motor and the Lockheed Vega.

The shape is instantly familiar to every fledgling aviator, however, because it's also the shape of everybody's first model airplane: high wing for stability, slab-sided fuselage for ease of construction, gear well forward to bounce her back into the air again.

Getting into it is everyone's biggest problem with the Cub. Each evolves his own technique, but they all are variations on the basic necessity to bend yourself double and twist through 180 degrees at the same time. If you have lumbago, better fly something else. Once in, things get easier. The engine fires at once. Taxiing is easy enough, but it takes a bit of practice before your heels stop slipping off the little brake pedals that rise, mushroom-like, from the cockpit floor. You must swing from side to side to see around the engine. Check the switches and carb heat, and, if you're solo, reach a long, long way forward from the back seat to reset the altimeter. Taxiing in a circle is the only way to ensure there is nobody about to land.

The takeoff is the first surprise. You leave the ground almost before you've got the throttle fully open. After that you creep upward at barely 400 fpm, with 55 mph and 2,150 rpm on the dials. Several of those sixty five horses seem to be expended in sheer noise. From the rear seat the visibility is not of the best. I guess the sky wasn't so crowded back in 1930. Watch the oil temperature; on a hot day it may be nudging the limit by the time you reach circuit height. Full bore gives about 87 mph and a hot cooking smell from the engine. A realistic cruise is 75 mph at 2,150 rpm. With any sort of breeze on your nose the cars on the thruway will leave you behind.

The aileron drag is remarkable. It's a blessing that a rudder is good and powerful. It's when you try slow flight that the Cub begins really to impress you. Power off, the stall comes up at about 35 mph, gentle, with a slight left wing drop if you keep the stick hard back.

The nose falls away before the wing, so that you tend to be picking up speed again before the wing really has much chance to go down. The center-of-pressure travel must be considerable. Fierce and prolonged back pressure on the stick is required to reach the stall, and if you release the stick at the moment of stall, the ship will pitch sixty degrees nose down. The Cub (Mach 0.17) preceded the F86 Sabre by about eighteen years with the variable incidence tail, though it's a slow and finger aching game trimming the thing.

Stalls with power on in turns are even more impressive. Try a climbing turn, with full power, top rudder, and the airspeed dropping. First a good warning buffet-and just about nothing else happens. The airspeed disappears into that region of uncertainty at the bottom of the dial, but she will not snap on you. If you really force it and go on forcing it, she may very gently shudder into level flight.

What a marvelously safe airplane for military observation purposes the Cub must have been! Its stalling characteristics must be as safe as any airplane ever made. The approach in a Cub is best done at higher-than-necessary speed. There is no aerodynamic reason for this, just the fact that if you try gliding in at the Cub's natural speed you are likely to have other airplanes weaving and dodging and backing up and overshooting behind you.

You can't see very much straight ahead if you're in the back seat. A crosswind helps. You can then peer around the side of the nose. If you are going to side-slip in, close the window first, or you will arrive in a billowing cloud of cockpit dust and papers. And you know what they say: If you can land a Cub smoothly, you can land anything.

You can aerobat the Cub. The Cub I flew was an old one with wooden spars, and I was asked not to do more than spins and wing overs in case the wood had become a little creaky with age.

That big door makes the Cub series probably the best-ever light plane for air-to air photography. That huge window-door gives you a magnificent field of view, with only the wing strut to get in the way, and more often than not, it is the wing strut that makes the picture.

What does it cost to operate a J-3? One owner told me it costs him no more than $3.78 an hour! Here is how that figure is made up, based on 200 hours' flying a year: fuel, 900 gallons, $396; oil, 36 quarts, $18; engine maintenance, $40 (own labor); airframe maintenance, $125 (own labor); tie down, $180 ($15 a month). That's a total of $759, over 200 hours, or $3.78 an hour.

Notice that no depreciation is included. The airplane is simply no longer depreciating. It may even be appreciating. Another Cub owner gives these figures for operating his J-3 for 250 hours in a year: initial purchase price, $1,100; fuel, $495; oil, $50; charts, computers, landing fees, and the like, $35; tie down and hangar, $180; liability insurance, $150; maintenance, $75; annual inspection, $100; and initial registration fee, $4. So his costs were $1,100 down and $1,089 for the year, which works out to $4.34 an hour (excluding purchase price). In the second year he flew 300 hours for $3 an hour, and in the third year about the same. He then sold the plane for only $100 less than he had paid for it, so his flying over those three years averaged $3.60 an hour.

"An airfoil that is very reluctant to stall," he said. "It has a broad peak to the lift curve. Undoubtedly more people learned to fly in this airplane than any other single type. Flying schools found you couldn't break them. And repairs were easy to make. The airplane is a little tricky to land-it porpoises. It does put the student on his guard." It does, indeed.

The oddest thing about the Cub is how heavy the controls are. You might almost be flying a bomber instead of the lightest of light planes. "The principal reason is that it has a high degree of lateral stability. It just doesn't like being rolled." Its slow cruising speed? "It's terribly dirty. There's really been no effort made to fair the intersections of any of the various parts. It's not the wing. A great many of us in this company have a great love and respect for that wing. It put us in business. And it's still used on the Aztec. I think that airfoil was a happy choice.

And the future of the Super Cub? "When it becomes our last fabric-covered airplane"-the other is the Pawnee-"I don't think there'll be any qualms about cutting it off unceremoniously."

Piper was still at the height of its success with the 65-horse J-3 Cub when it began developing bigger and better things out of the basic Cub airframe. First came the J-4, the side-by-side Cub-a smooth airplane, if you can find one. Not many more than a hundred are still flying. Then the J-5 Cruiser, a fat Cub with seats for three, cruising 85 mph on 75 hp, which is not half bad.

Those were the days just before Pearl Harbor, and by peacetime the Cruiser had become the J-5C Super Cruiser, with 100 hp, an electrical system, and redesigned landing gear. About this time, Piper abandoned the J nomenclature and started the PA series; the Super Cruiser is also known as the PA-12.

The last of the Cruisers was the PA-14 Family Cruiser, with seats for four, 115 hp, and a devastating 110-mph cruise. The Super Cruiser is far more abundant than its two brothers, for upward of a thousand Supers are still active, while less than a hundred PA-14's and maybe two hundred 75-horse J-5's are still about. They were all, in their day, extraordinary value; you could get a J-5 new for $1,995 in 1940 and a PA-12 for $2,995 in 1945.

The Cruiser made its tiny mark on history, too, for in 1947 two PA-12's flew around the world, their two pilots spending four months battling headwinds, ice, desert heat, and every possible kind of foul-up. But they proved the superior dependability of the Piper airframes. The worst mechanical problem in five hundred hours of flying thirty percent over gross was a cracked tail wheel.

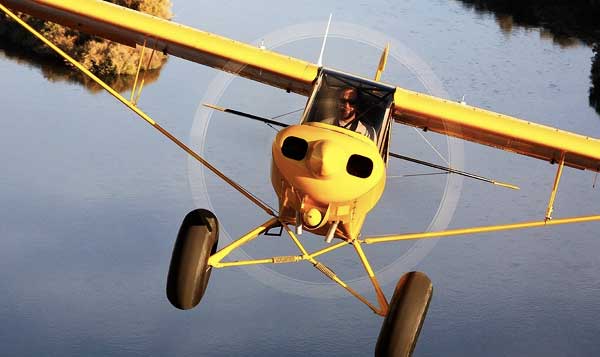

If you think the Cub is a real fun airplane, you should try the Super Cub, while you've still got a chance. For a start, you fly it solo from the front rather than the rear seat, which is a big improvement. You run it up to full power against the brakes, lift the tail on the slipstream, let go of the brakes, lurch forward a few yards, lower full flap, and haul back viciously on the stick. Surprise! You get airborne.

You can climb a Super Cub at 1,000 f pm. You can climb at an angle of forty five degrees to the horizontal. In a wind you can fly slowly backward relative to the ground. You can reach well over 20,000 feet quite quickly, and with the arctic heater Piper installs, you can gently roast yourself at the same time. You can land in almost as short a distance as needed for takeoff, but not quite, so that you can be sure of getting out of any field you've gotten into. The technique is to approach with full flaps, a little power, and the airspeed way off the bottom of the dial. At the moment of touchdown, cut the power, raise the flaps, and stand on the brakes. With practice you can achieve a most impressively sudden arrival.

We once paced out what a real expert could achieve in the way of a short landing run. Against a reasonable breeze it was thirty-seven yards. But have a care, for the Super Cub is heavier than the old J-3, and it can stall on you.

The load you could carry for the horsepower has always been one of the Cub's notable qualities. The early ones with only 37 hp would take 400 pounds disposable load; with 50 hp, 500 pounds; with 65 hp, 540 pounds. The big 150 Super Cub will carry 820 pounds. Nor is it very critical, for you can get away with fair overloads, and the allowable center of gravity range is generous. In consequence, all the Cub series have always been favorites for any kind of flying job, be it at work, air shows, endurance flights, or mountain landings. Truly, a universal airplane.

Let the late Mr. Piper have the last word in this story, about his old partner C. G. Taylor. "Taylor designed a good airplane," he said. "Have to give the devil his due." And what did old devil Taylor do? He went away and designed the Taylorcraft. It wasn't really anything like the Cub: It had side by-side seats and a very different airfoil. C. G. Taylor moved to Alliance, Ohio, and set up the Taylorcraft Aviation Corporation to build his new bird. At first it had a 40-hp Continental, and a cruising speed of less than 90 mph, but soon the Taylorcraft moved up to 65 hp-Lycoming, Franklin, or Continental, according to the customer's choice, though by far the largest number chose the Continental.

The owner of one Taylorcraft acquired his bird, a 1940 B-12 Continental-powered model, as a wreck from someone's chicken coop. He then rebuilt it himself. Introducing us to his machine, he said, "I think it's an excellent airplane. It's efficient. You can cruise nicely at 2,050 rpm, where the engine's real smooth, and you're making 90 to 95 mph."

He went on: "I paid $200 for it as a bag of bones. I guess i've put about $1,600 into it since, rebuilding. And we've flown some five hundred hours in it. It's a little faster, perhaps a little more maneuverable than a J-3. It's a nice cross-country airplane. I've only got one wing tank in mine, but I've heard they used to have four, as well as a fuselage tank.

"In turbulence she does have a tendency to bounce around a lot, but she's a gentle and forgiving old machine-though if you stall with a bit of rudder you'll go right into a spin."

We climbed aboard and it's cozy inside. Don't take anyone with sharp elbows into a T'craft. The airplane has enormous round control wheels, like something out of a 1930's cloth bomber. How cockpit styles have changed! The airplane's owner has painted a yellow mark on his wheels to show where top dead center lies. And he shows us the trim lever, under his seat, and makes us open the door to peer back and see the trim tab, a separate vane mounted underneath the stabilizer.

Fired up, we bounce and hop across the stones to the takeoff point, which at Old Rhinebeck in this wind is at one side of a big pit. You hurtle down one side of the pit, and stagger up the other, waiting for the right combination of bump and gust to get airborne. In the T'craft this moment seems to come very smartly, for the takeoff is quite short. We climb out indicating 1,100 fpm, which means the VSI is lying in its teeth, but even so, the climb-out is right smart.

At 2,000 feet we level off. It's a real wintry day, and while the cabin heat is good around the feet there's a Force Eight gale coming in the door onto your face. Visibility is better than expected, except in a turn. Stability in pitch is good, but the T'craft lacks positive stability in yaw. Sideslip and let go, and she stays side slipping, with only a slow return to straight flight. You must keep on the rudder all the time, or the ball in the slip indicator will be all over the place. The ailerons on this airplane are very big and sensitive, and quite uncompensated, which doesn't help.

Before starting the approach, we are told that the airplane tends to float, due to the curved undersurface of its wing. The best glide is 60 to 65; the sink rate goes up at lower speeds, and if you slow it up too soon you can find yourself sinking onto the ground with rather an untidy thump. We find we need to keep pushing on the rudder to keep things straight on final. But there's perfectly adequate control on the roll-out.

Taylorcraft went on building the 65-hp Model B for many years. During World War II it produced a tandem trainer that looked very much like the old Cub, and also considerable numbers of the L-2B-called Grasshopper, as was the military Cub-in which an observer sat behind the pilot.

Taylor designed a four-seater Model 15 with a 150-hp Franklin, but what with a fire in the plant and overproduction of the 65-hp model, Taylorcraft was soon bankrupt again. The corporation was revived in 1947 and lingered on into the mid fifties, experimenting with molded fiberglass coverings and models with up to 225 hp. C. U. Taylor, though he designed splendid airplanes, was never the world's best businessman, whereas perhaps his old partner W. T. Piper was.

About Floats

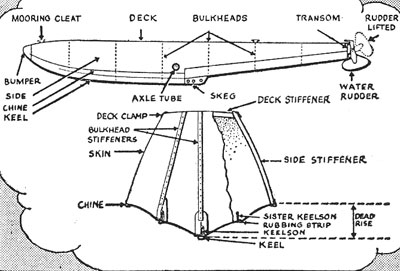

Float Terminology

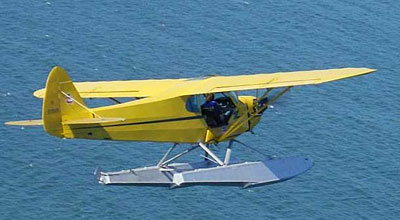

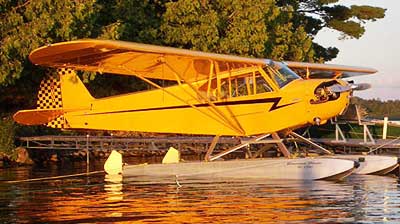

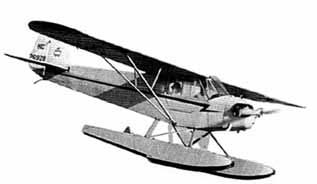

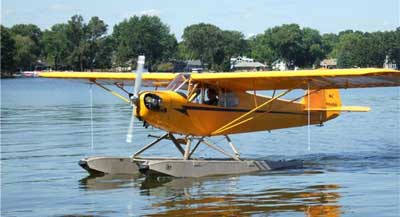

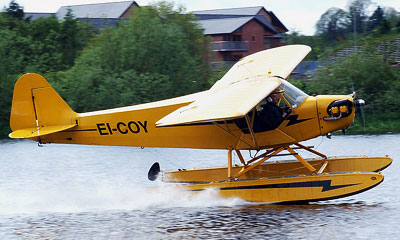

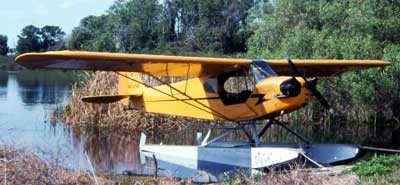

Adding Floats to the Piper J-3 Cub made it very versatile, so it could take off and land on just about any open body of water, and with Skis any snow covered field.
Approximately 900 J-3 Cubs were produced in 1945, 1,320 in 1946, and 720 in 1947

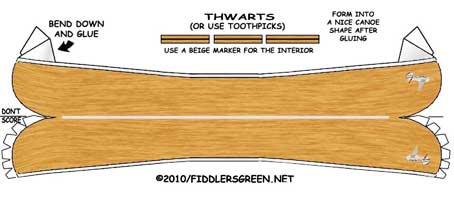

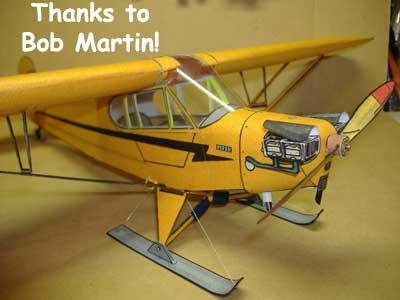

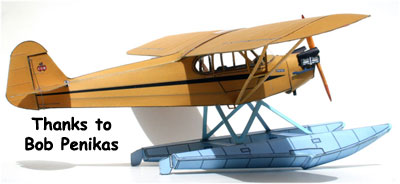

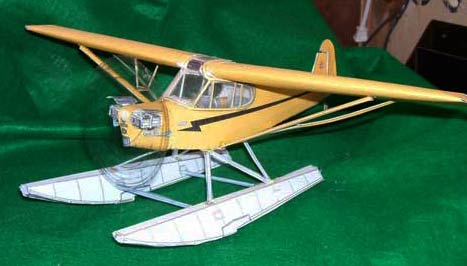

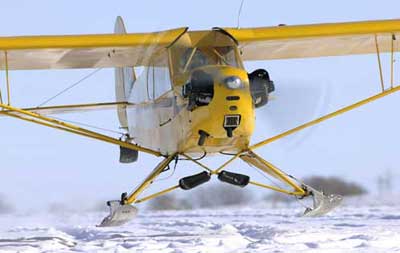

	There are Floats and Skis for the new Piper J-3 Cub cardmodel. Even a strap-on canoe all included in the folder. Image thanks to Count Mudget

About the Piper Cub....
The model that's still considered the generic general aviation airplane by many non-pilots still has an enormous attraction to pilots, as well. In fact, it's so popular, it has taken on classic status and assumed a price tag out of all proportion to its talents. Created in the early '30s, the Cub evolved to the 65 hp J-3 that would carry two at 65 knots cruise. The Super Cub came along in the '50s, with engines that eventually stabilized at 150 hp and performance that stabilized just this side of unbelievable. The Super Cub became the standard bush plane/tow plane/utility hauler of the world, with the ability to leap out of 500 foot strips with payloads inside or strapped outside that often boggled the imagination.

CUB CONSTRUCTION

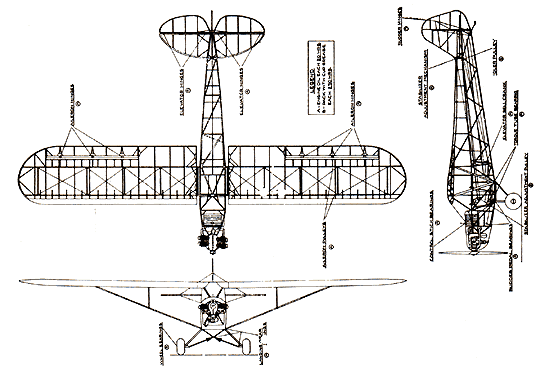

The J-3 fuselage framework was built of welded chrome molly steel tubing lightly faked to shape and covered with Grade A cotton fabric, testing 80 psi, warp and fill, minimum. Flightex was the most widely used brand name. The finish on the original Cubs was cellulose nitrate dope. Postwar Cubs were finished with cellulose butyrate dope. The last Super Cubs were covered with Ceconite Dacron cloth.

Seats of 26-inch width were mounted in tandem, and a large split-type door opened most of the right side; the airplane could be (and often was) flown with the right side open. Windshield and windows were of Pyralin, and the left-side window was slideable for controlled ventilation. The sparse upholstery was whipcord; a small baggage shelf behind the rear seat had a 20-pound capacity. The nine-gallon (or optional 12-gallon) fuel tank was mounted just behind the firewall and utilized a simple, bobber-type fuel gauge that projected through the filler cap. The wing was framed with solid spruce spars (early models) or dural spars (late models) and stamped aluminum ribs. The leading edges, back to the front spar, were covered with dural metal sheet, and the completed framework was fabric-covered.

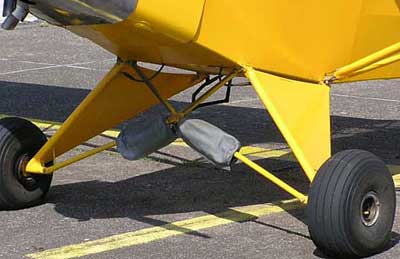

A simple tripod landing gear of 72-inch tread was snubbed with Rusco rubber shock rings, and the 7.00 x 4 wheels were shod with low-pressure tires. There were no wheel brakes on the early Cubs, except as extra-cost items. The fabric covered tail group was framed of welded steel tube, and the horizontal stabilizer was adjusted in flight, controlled by a jack screw. The rudder was aerodynamically balanced, and all controls were operated by twisted steel cable.

The standard J-3 finish was "Cub Yellow" (Randolph M-9521-D Sport Yellow) with black trim. A Sensenich wooden propeller, wiring for position lights, dual controls, safety belts, and a first aid kit were standard equipment. Optional equipment included battery, position lights, carburetor heater, cabin heater, steerable tail wheel, Goodyear air wheels with brakes, 12-gallon fuel tank, wheel pants, prop spinner, Edo 1070 floats, and skis. The Goodyear tire size was 8.00. x 4.

USAir pilot George Welsch has always had a sentimental attachment to the Cub. George's father soled in one in 1940 and in 1964 he soloed George in a J-3. When Welsch learned that the historical significance of the Taylor factory site was lost on most Bradford residents and that no marker was in place to signify the spot, he decided to do something about it. Welsch contacted the president of the University of Pittsburgh at Bradford, which is located on the site of Harri Emery Airport (it turned out the school had a collection of rare Piper memorabilia) with a plan to build a monument. With help from the school Welsch has set up a foundation to raise the estimated $25,000 needed for the project.

Just before entry into World War II, the United States government implemented what was known as the Civilian Pilot Training Program. The aircraft of choice for the "CPT" was the Piper Cub. In 1940, 3,016 Cubs were built and at the wartime peak, a new one left the factory every 20 minutes. It was recorded that over 50,000 pilots began their flight training in Piper Cubs during WWII.

In 1947, the U.S. Army selected the Cub for artillery spotting. It was soon learned that this versatile airplane had capabilities far beyond the Army's initial expectations. The Army's version, modified for various tasks, was known as the L-4 and designated the "Grasshopper." The U'S. Navy had a number of these airplanes designated the NE-1.

Specifications for the 65 h.p. version gave it a maximum speed of 85 mph, and a service ceiling of 12,000 feet. The range was just under 200 miles and the gross weight was 7220 pounds. The airplane had a 35'2" wingspan and a length of 22' 3".

Civil Air Patrol has a history with this airplane that dates back to WWII. During this time, civilian pilots flew their private aircraft, many of which were Piper Cubs, in patrol along the Atlantic Coast. They conducted exhaustive searches for German submarines, known as U-boats. When a U-boat was sighted, CAP pilots would call in air strikes. German U-boat commanders quickly realized the threat of these tiny aircraft.

Many U-boats would crash-dive upon sighting a CAP aircraft. Some of the submarine crews would try to shoot them down and, as a result, the Army Air Corps began arming the CAP airplanes with bombs. During the war two German U-boats were sunk by CAP air crews. If a CAP airplane was shot down, and several were, there was little chance for survival in the cold Atlantic. As a result of this threat, CAP developed a program of search and rescue which remains one of its three main missions to this day.

Because of the nature of the mission of the early CAP air crews, they became known as the "Flying Minutemen!" They would leave their homes in the morning, go fight in a war during the day, and return for dinner in the evening. This is how the "minutemen" fought during the Revolutionary War.

"After the German surrender in 1945, one of Hitler's high-ranking naval officers was asked why the Nazi U- boats had been withdrawn from the U.S. coastal waters early in 1943. The answer: 'it was because of those damned little red and yellow airplanes!" (quoted from Robert E. Neprud's publication, Flying Minutmen).

---

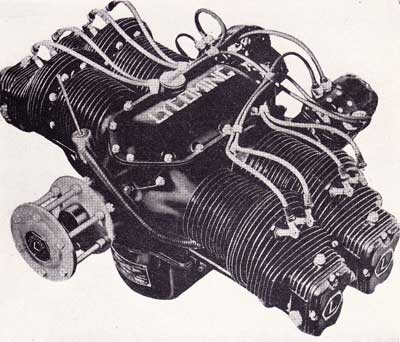

Lycoming O-145 Engine

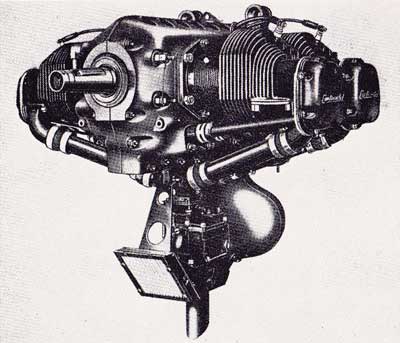

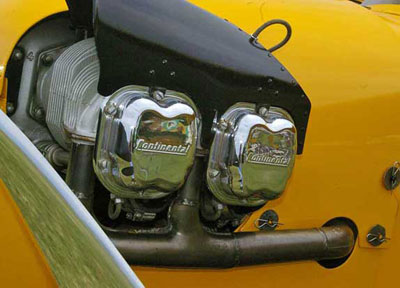

The Continental A65, was the most widely used engine in the J3 Cub

---

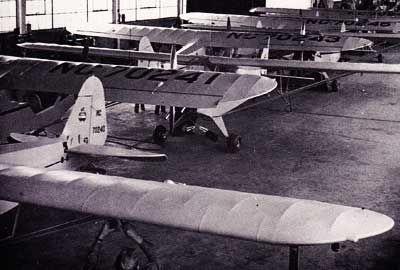

The Piper J-3 Cub assembly line at the Lock Haven, plant in 1946.

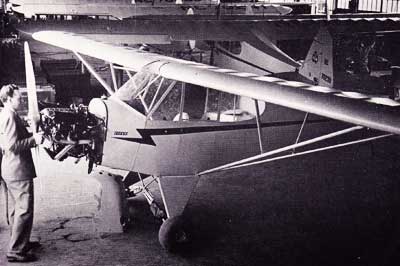

Piper J-3 Cub gets its powerplant and prop at the end of the assembly line.

---

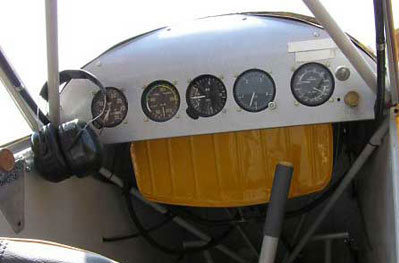

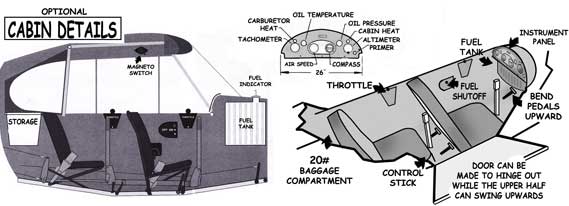

The Cockpit is very basic making it easy for beginner flyers.	With fixed landing gear there are no worries of forgetting to lower the landing gear.

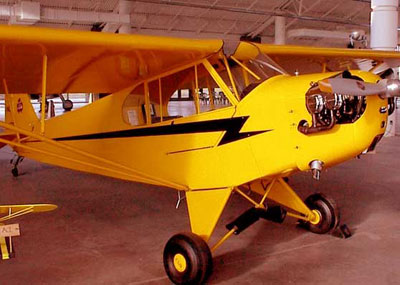

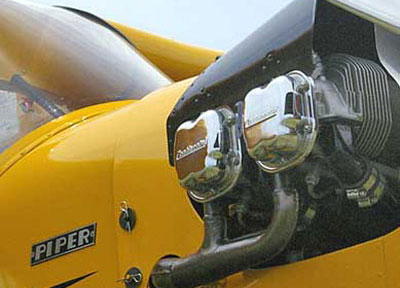

The J-3 is distinguished from its successors by the exposed cylinder heads. There are very few other examples of "flat" aircraft engines (as opposed to radial engines) in which the cylinder heads are exposed. Note that they are NOT directly opposed.

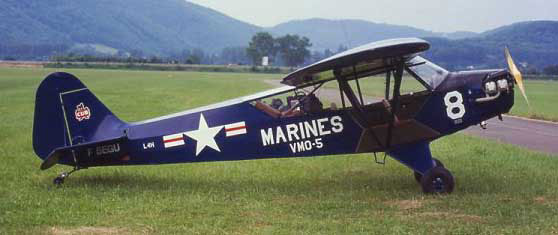

Here you can see the difference between the standard J-3 Cub and the L-4 "Grasshopper" it was simply the extra windows on the top and sides.

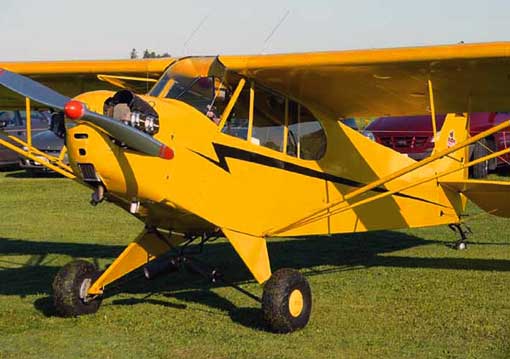

The Piper J3 Cub airplane has been a sight to behold for decades and usually attracts an audience when parked

Piper J3 Cub Specifications

Crew: one pilot Capacity: one passenger Length: 22 ft 5 in Wingspan: 35 ft 3 in Height: 6 ft 8 in Wing area: 178.5 ft² Empty weight: 765 lb Useful load: 455 lb Max takeoff weight: 1,220 lb Powerplant: 1× Continental A-65-8 air-cooled flat four, 65 hp at 2,350 rpm Performance Maximum speed: 87 mph Cruise speed: 75 mph Range: 220 mi Service ceiling: 11,500 ft Rate of climb: 450 ft/min Wing loading: 6.84 lb/ft² Power/mass: 18.75 lb/hp

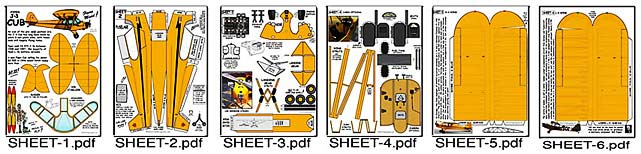

This Piper J-3 Cub stick model is FREE as an 11x16 pdf, click image for FREE download.

Whoops.....

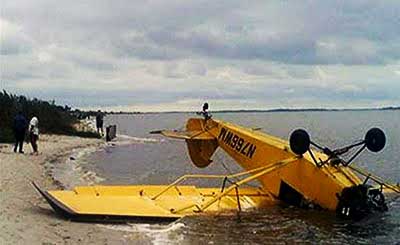

On Sunday, September 13, 2009 Thomas J. Henry, 45, of Ellicott City, MD., was flying this single-engine Piper Cub when the engine shut down. While on its way to land the plane's propeller got caught in the sand and the plane flipped over into the water.
